前言
大部分开发者都知道加索引会快。但实际过程中,我们常碰到一些疑问&困难:
本文尝试去解释索引的基本知识&解答上述的疑问。
一、索引究竟是什么东西?
大部分开发者接触索引,大概知道索引类似书的目录,你要找到想要的内容,通过目录找到限定的关键字,进而找到对应的章节的pageno,再找到具体的内容。 在数据结构里面,最简单的索引实现类似hashmap,通过关键字key,映射到具体的位置,找到具体的内容。但除了hash的方式,还有多种的方式实现索引。
(一)索引的多种实现方式以及特色
hash / b-tree / b+-tree
redis HSET / MongoDB&PostgreSQL / MySQL

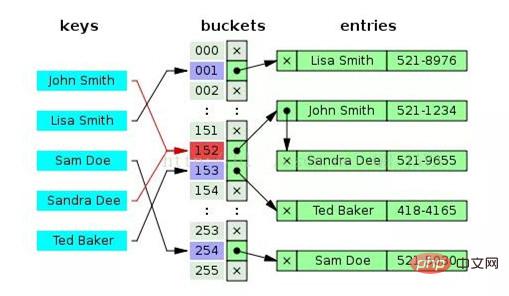

hashmap

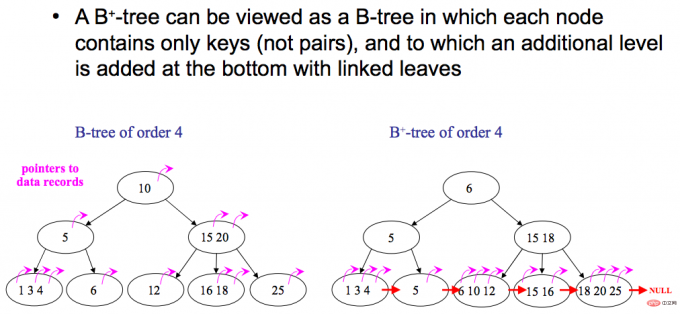

一图见b-tree & b+-tree 差别:
算法查找复杂度上来说:
至于为何MongoDB 的实现选择b-tree 而非 b+-tree ? 网上多篇文章有阐述,非本文重点。
(二)数据&索引的存储

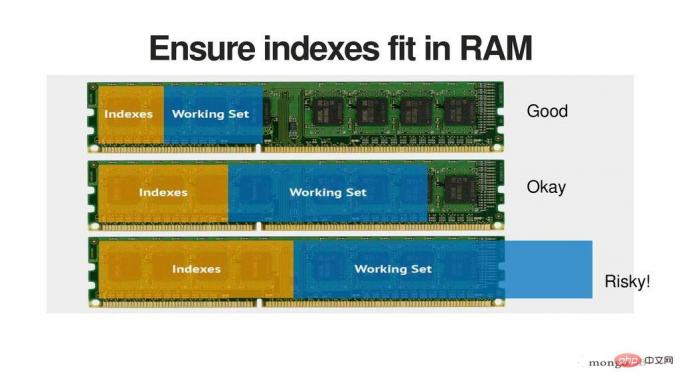

index尽量存储在内存,data 其次。 注意只保留必要的index,内存尽量用在刀刃上。 如果index memory 都接近占满memory,那么就很容易读到disk,速度就下来了。
(三)知道索引的实现&存储原理后的思考
insert/update/delete 会触发rebalance tree,所以,增删改数据,索引会触发修改,性能会有损耗,索引不是越多越好。既然如此,选哪些字段作为索引呢?当查询用到这些条件,怎么办? 拿一个最简单的hashmap来讲,为什么复杂度不是O(1),而是所谓接近 O(1)。因为有key 冲突/重复,DB 去找的时候,key 冲突的数据一大堆的话,还是得轮着继续找。b-tree 看键(key)的选择也是如此。 因此一个大部分开发经常犯的错就是对没有区分度的key建索引。例如:很多就只有集中类别的 type/status 的 documents count 达几十万以上的collection,通常这种索引没什么帮助。
二、复合索引
(一)复合索引不是越多越好
如果不想多建多余的索引,开发的同事在复合 & 单个字段选择上有时候挺纠结的。
根据典型碰到的场景,来做几个实验: 这里创建了个loans collection。简化只有100条数据。这个是借贷的表有 _id, userId, status(借贷状态), amount(金额).
db.loans.count()100
db.loans.find({ "userId" : "59e022d33f239800129c61c7", "status" : "repayed", }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"$and" : [
{
"status" : {
"$eq" : "repayed"
}
},
{
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
}
]
},
"queryHash" : "15D5A9A1",
"planCacheKey" : "15D5A9A1",
"winningPlan" : {
"stage" : "COLLSCAN",
"filter" : {
"$and" : [
{
"status" : {
"$eq" : "repayed"
}
},
{
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
}
]
},
"direction" : "forward"
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
注意上面 COLLSCAN 全表扫描了,因为没有索引。接下来我们分别建立几个索引。 step 1 先建立 {userId:1, status:1}
db.loans.createIndex({userId:1, status:1})
{
"createdCollectionAutomatically" : false,
"numIndexesBefore" : 1,
"numIndexesAfter" : 2,
"ok" : 1
}
|
db.loans.find({ "userId" : "59e022d33f239800129c61c7", "status" : "repayed", }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"$and" : [
{
"status" : {
"$eq" : "repayed"
}
},
{
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
}
]
},
"queryHash" : "15D5A9A1",
"planCacheKey" : "BB87F2BA",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
],
"status" : [
"["repayed", "repayed"]"
]
}
}
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
结果:如愿命中 {userId:1, status:1} 作为 winning plan。
step2:再建立个典型的索引 userId
db.loans.createIndex({userId:1})
{
"createdCollectionAutomatically" : false,
"numIndexesBefore" : 2,
"numIndexesAfter" : 3,
"ok" : 1
}
|
db.loans.find({ "userId" : "59e022d33f239800129c61c7", "status" : "repayed", }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"$and" : [
{
"status" : {
"$eq" : "repayed"
}
},
{
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
}
]
},
"queryHash" : "15D5A9A1",
"planCacheKey" : "1B1A4861",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"[\"59e022d33f239800129c61c7\", \"59e022d33f239800129c61c7\"]"
],
"status" : [
"[\"repayed\", \"repayed\"]"
]
}
}
},
"rejectedPlans" : [
{
"stage" : "FETCH",
"filter" : {
"status" : {
"$eq" : "repayed"
}
},
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1
},
"indexName" : "userId_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
]
}
}
}
]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
留意到 DB 检测到 {userId:1, status:1} 为更优执行的方案.
db.loans.find({ "userId" : "59e022d33f239800129c61c7" }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
},
"queryHash" : "B1777DBA",
"planCacheKey" : "1F09D68E",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1
},
"indexName" : "userId_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
]
}
}
},
"rejectedPlans" : [
{
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
],
"status" : [
"[MinKey, MaxKey]"
]
}
}
}
]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
留意到 DB 检测到 {userId:1} 为更优执行的方案,嗯~,如我们所料.
db.loans.find({ "status" : "repayed" }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"status" : {
"$eq" : "repayed"
}
},
"queryHash" : "E6304EB6",
"planCacheKey" : "7A94191B",
"winningPlan" : {
"stage" : "COLLSCAN",
"filter" : {
"status" : {
"$eq" : "repayed"
}
},
"direction" : "forward"
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
有趣的部分:status不命中索引,全表扫描 接下来的步骤,加个sort :
db.loans.find({ "userId" : "59e022d33f239800129c61c7" }).sort({status:1}).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
},
"queryHash" : "F5ABB1AA",
"planCacheKey" : "764CBAA8",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
],
"status" : [
"[MinKey, MaxKey]"
]
}
}
},
"rejectedPlans" : [
{
"stage" : "SORT",
"sortPattern" : {
"status" : 1
},
"inputStage" : {
"stage" : "SORT_KEY_GENERATOR",
"inputStage" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1
},
"indexName" : "userId_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
]
}
}
}
}
}
]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
(二)其他尝试
有趣的部分:status 不命中索引
db.loans.find({ "status" : "repayed","userId" : "59e022d33f239800129c61c7", }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"$and" : [
{
"status" : {
"$eq" : "repayed"
}
},
{
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
}
]
},
"queryHash" : "15D5A9A1",
"planCacheKey" : "1B1A4861",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"[\"59e022d33f239800129c61c7\", \"59e022d33f239800129c61c7\"]"
],
"status" : [
"[\"repayed\", \"repayed\"]"
]
}
}
},
"rejectedPlans" : [
{
"stage" : "FETCH",
"filter" : {
"status" : {
"$eq" : "repayed"
}
},
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1
},
"indexName" : "userId_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
]
}
}
}
]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
命中索引,跟query的各个字段顺序不相关,如我们猜测。 有趣部分再来, 我们删掉索引{userId:1}
db.loans.dropIndex({"userId":1})
{ "nIndexesWas" : 3, "ok" : 1 }
db.loans.find({"userId" : "59e022d33f239800129c61c7", }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
},
"queryHash" : "B1777DBA",
"planCacheKey" : "5776AB9C",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"
],
"status" : [
"[MinKey, MaxKey]"
]
}
}
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
DB 执行分析器觉得索引{userId:1, status:1} 能更优,没有命中复合索引,这个是因为status不是leading field。
db.loans.find({ "status" : "repayed" }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"status" : {
"$eq" : "repayed"
}
},
"queryHash" : "E6304EB6",
"planCacheKey" : "7A94191B",
"winningPlan" : {
"stage" : "COLLSCAN",
"filter" : {
"status" : {
"$eq" : "repayed"
}
},
"direction" : "forward"
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
再换个角度sort 一遍, 与前面query & sort互换,之前是:
db.loans.find({userId:1}).sort({ "status" : "repayed" })
|
看看有啥不一样?
db.loans.find({ "status" : "repayed" }).sort({userId:1}).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"status" : {
"$eq" : "repayed"
}
},
"queryHash" : "56EA6313",
"planCacheKey" : "2CFCDA7F",
"winningPlan" : {
"stage" : "FETCH",
"filter" : {
"status" : {
"$eq" : "repayed"
}
},
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"userId" : 1,
"status" : 1
},
"indexName" : "userId_1_status_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"userId" : [ ],
"status" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"userId" : [
"[MinKey, MaxKey]"
],
"status" : [
"[MinKey, MaxKey]"
]
}
}
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
如猜测,命中索引。 再来玩玩,确认下leading filed试验:
db.loans.dropIndex("userId_1_status_1")
{ "nIndexesWas" : 2, "ok" : 1 }
|
db.loans.getIndexes()
[
{
"v" : 2,
"key" : {
"id" : 1
},
"name" : "id_",
"ns" : "cashLoan.loans"
}
]
|
db.loans.createIndex({status:1, userId:1})
{
"createdCollectionAutomatically" : false,
"numIndexesBefore" : 1,
"numIndexesAfter" : 2,
"ok" : 1
}
|
db.loans.getIndexes()
[
{
"v" : 2,
"key" : {
"id" : 1
},
"name" : "id_",
"ns" : "cashLoan.loans"
},
{
"v" : 2,
"key" : {
"status" : 1,
"userId" : 1
},
"name" : "status_1_userId_1",
"ns" : "cashLoan.loans"
}
]
|
db.loans.find({ "status" : "repayed" }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"status" : {
"$eq" : "repayed"
}
},
"queryHash" : "E6304EB6",
"planCacheKey" : "7A94191B",
"winningPlan" : {
"stage" : "FETCH",
"inputStage" : {
"stage" : "IXSCAN",
"keyPattern" : {
"status" : 1,
"userId" : 1
},
"indexName" : "status_1_userId_1",
"isMultiKey" : false,
"multiKeyPaths" : {
"status" : [ ],
"userId" : [ ]
},
"isUnique" : false,
"isSparse" : false,
"isPartial" : false,
"indexVersion" : 2,
"direction" : "forward",
"indexBounds" : {
"status" : [
"["repayed", "repayed"]"
],
"userId" : [
"[MinKey, MaxKey]"
]
}
}
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
db.loans.getIndexes()
[
{
"v" : 2,
"key" : {
"id" : 1
},
"name" : "id_",
"ns" : "cashLoan.loans"
},
{
"v" : 2,
"key" : {
"status" : 1,
"userId" : 1
},
"name" : "status_1_userId_1",
"ns" : "cashLoan.loans"
}
]
|
db.loans.find({"userId" : "59e022d33f239800129c61c7", }).explain()
{
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "cashLoan.loans",
"indexFilterSet" : false,
"parsedQuery" : {
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
},
"queryHash" : "B1777DBA",
"planCacheKey" : "5776AB9C",
"winningPlan" : {
"stage" : "COLLSCAN",
"filter" : {
"userId" : {
"$eq" : "59e022d33f239800129c61c7"
}
},
"direction" : "forward"
},
"rejectedPlans" : [ ]
},
"serverInfo" : {
"host" : "RMBAP",
"port" : 27017,
"version" : "4.1.11",
"gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"
},
"ok" : 1
}
|
看完这个试验,明白了 {userId:1, status:1} vs {status:1,userId:1} 的差别了吗?
PS:这个case 里面其实status 区分度不高,这里只是作为实例展示。
三、总结:
DB 一般都有执行器优化的分析,MySQL & MongoDB 都是 用explain 来做分析。 语法上MySQL :
explain your_sql
MongoDB:
yoursql.explain()
总结典型:理想的查询是结合explain 的指标,他们通常是多个的混合:
彩蛋
文末,还有最开头1个问题没回答:如果我的索引改加的都加了,还不够快,怎么办? 留个悬念,之后再写一篇。
更多PHP相关技术文章,请访问PHP教程栏目进行学习!
(责任编辑:admin) |
