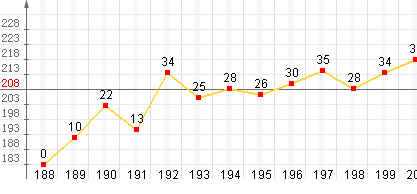

最近开发彩票分析网站，需要用到Javascript 绘制分析曲线图。
参考网上的绘图代码，自己封装了一个绘图类，给大家做一个参考。

引用方法:

new gov.Graphic(par1,par2,par3);

par1 为绘图数据

var data=new period([0,10,22,13,34,25,28,26,30,35,28,34,39,28,26,50,35,28,34,39,55],//y轴数据[188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,
204,205,206,207,208]//x轴数据
);

par2 为绘图的容器层id

par3 为绘图样式参数，可选参数

默认值：
{
       height:170,                 //绘图区域高度
       maxHeight:50,              //y轴最高数值
       barDistance:26,           //x轴坐标间距
       topDistance:0,             //上部填充
       bottomDistance:0,        //底部填充
       leftDistance:20,            //左部填充
       pointWidth:5,               //坐标点宽度
       pointHeight:5,             //坐标点高度
       pointColor:"#ff0000",     //坐标点颜色
       lineColor:"#ffd43a",       //连接线颜色
       valueWidth:20,            //y轴数值宽度
       valueColor:"#000",       //y轴数值颜色
       timeWidth:20,             //x轴数值宽度
       timeColor:"#000",       //x轴数值颜色
       disvalue:true,             //是否显示y轴数值
       distime:true              //是否显示x轴数值
}

运行代码框

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <meta http-equiv="Content-Type" content="text/html; charset=gb2312" /> <title>无标题文档</title> <script> var gov=new Object(); var Class = { create: function() { return function() { this.initialize.apply(this, arguments); } } } Object.extend = function(destination, source) { for (var property in source) { destination[property] = source[property]; } return destination; } var $ = function(elem) { if (arguments.length > 1) { for (var i = 0, elems = [], length = arguments.length; i < length; i++) elems.push($(arguments[i])); return elems; } if (typeof elem == 'string') { return document.getElementById(elem); } else { return elem; } }; var period = Class.create(); period.prototype = { initialize:function(value,time){ this.value = value; this.time = time; } }; gov.Graphic = Class.create(); gov.Graphic.prototype={ initialize: function(data,elm,options){ this.setOptions(options); this.entity=document.createElement("div"); this.pointBox=$(elm); this.showPointGraphic(data); }, setOptions: function(options) { this.options = { height:170, //绘图区域高度 maxHeight:50, //y轴最高数值 barDistance:26, //x轴坐标间距 topDistance:0, //上部填充 bottomDistance:0, //底部填充 leftDistance:20, pointWidth:5, //坐标点宽度 pointHeight:5, //坐标点高度 pointColor:"#ff0000", //坐标点颜色 lineColor:"#ffd43a", //连接线颜色 valueWidth:20, //y轴数值宽度 valueColor:"#000", //y轴数值颜色 timeWidth:20, //x轴数值宽度 timeColor:"#000", //x轴数值颜色 disvalue:true, //是否显示y轴数值 distime:true //是否显示x轴数值 } Object.extend(this.options, options || {}); }, showPointGraphic:function(data,obj) { var This=this; var showPoints=new Array(); var values=new Array(); var times=new Array(); This.points=data; This.count=data.value.length; for(var i=0;i<This.count;i++) { var showPoint=document.createElement("div"); var spanValue=document.createElement("span"); var spanTime=document.createElement("span"); showPoint.height=This.points.value[i]; showPoint.value=This.points.value[i]; showPoint.time=This.points.time[i]; showPoint.style.backgroundColor=this.options.pointColor; showPoint.style.fontSize="0px"; showPoint.style.position="absolute"; showPoint.style.zIndex ="999"; showPoint.style.width=this.options.pointWidth+"px"; showPoint.style.height=this.options.pointHeight+"px"; showPoint.style.top=this.options.topDistance+"px"; spanValue.style.position="absolute"; spanValue.style.width=this.options.valueWidth+"px"; spanValue.style.textAlign="center"; spanValue.style.color=this.options.valueColor; spanValue.style.zIndex ="999"; spanTime.style.position="absolute"; spanTime.style.width=this.options.timeWidth+"px"; spanTime.style.textAlign="center"; spanTime.style.color=this.options.timeColor; var timeHeight=15; var valueHeight=21; if(!this.options.disvalue) { spanValue.style.display="none"; valueHeight=this.options.pointHeight; } if(!this.options.distime) { spanTime.style.display="none"; timeHeight=0; } var left; if(showPoints.length!=0){ left=parseInt(showPoints[showPoints.length-1].style.left)+parseInt(showPoints[showPoints.length-1].style.width)+this.options.barDistance; } else{ left=this.options.leftDistance; } showPoint.style.left=left+"px"; spanValue.style.left=left+parseInt((this.options.pointWidth-this.options.valueWidth)/2)+"px"; spanTime.style.left=left+parseInt((this.options.pointWidth-this.options.timeWidth)/2)+"px"; if(showPoint.height>this.options.maxHeight) { showPoint.height=this.options.maxHeight; } spanValue.innerHTML=showPoint.value; spanTime.innerHTML=showPoint.time; showPoints.push(showPoint); values.push(spanValue); times.push(spanTime); This.entity.appendChild(showPoint); This.entity.appendChild(spanValue); This.entity.appendChild(spanTime); var percentage=showPoints[i].height/this.options.maxHeight||0; var pointTop=(this.options.height-this.options.topDistance-this.options.bottomDistance-timeHeight-valueHeight)*percentage; showPoints[i].style.top=(this.options.height-this.options.bottomDistance-pointTop-timeHeight-this.options.pointHeight)+"px"; values[i].style.top=(this.options.height-this.options.bottomDistance-pointTop-timeHeight-valueHeight)+"px"; times[i].style.top=this.options.height-this.options.bottomDistance-timeHeight+"px"; } var _leng=showPoints.length for(var i=0;i<_leng;i++) { if(i>0) { This.drawLine(parseInt(showPoints[i-1].style.left), parseInt(showPoints[i-1].style.top), parseInt(showPoints[i].style.left), parseInt(showPoints[i].style.top) ); } } This.Constructor.call(This); }, drawLine:function(startX,startY,endX,endY) { var xDirection=(endX-startX)/Math.abs(endX-startX); var yDirection=(endY-startY)/Math.abs(endY-startY); var xDistance=endX-startX; var yDistance=endY-startY; var xPercentage=1/Math.abs(endX-startX); var yPercentage=1/Math.abs(endY-startY); if(Math.abs(startX-endX)>=Math.abs(startY-endY)) { var _xnum=Math.abs(xDistance) for(var i=0;i<=_xnum;i++) { var point=document.createElement("div"); point.style.position="absolute"; point.style.backgroundColor=this.options.lineColor; point.style.fontSize="0"; point.style.width="1px"; point.style.height="1px"; startX+=xDirection; point.style.left=startX+this.options.pointWidth/2+"px"; startY=startY+yDistance*xPercentage; point.style.top=startY+this.options.pointHeight/2+"px"; this.entity.appendChild(point); } } else { var _ynum=Math.abs(yDistance) for(var i=0;i<=_ynum;i++) { var point=document.createElement("div"); point.style.position="absolute"; point.style.backgroundColor=this.options.lineColor; point.style.fontSize="0"; point.style.width="1px"; point.style.height="1px"; startY+=yDirection; point.style.top=startY+this.options.pointWidth/2+"px"; startX=startX+xDistance*yPercentage; point.style.left=startX+this.options.pointHeight/2+"px"; this.entity.appendChild(point); } } }, Constructor:function() { this.entity.style.position="absolute"; this.pointBox.innerHTML=""; this.pointBox.appendChild(this.entity); } } window.onload=function(){ var data=new period([0,10,22,13,34,25,28,26,30,35,28,34,39,28,26,50,35,28,34,39,55],//y轴数据 [188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208]//x轴数据 ); var data1=new period([48,23,10,2,12,8,24,25,15,35,25,14,42,58,46,25,12,8,14,28,42],//y轴数据 [188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208]//x轴数据 ); new gov.Graphic(data,"box"); new gov.Graphic(data1,"box1",{ pointColor:"#3366ff",lineColor:"#33ffff"}); } </script> <style type="text/css"> body,td,th { font-family: Arial, Helvetica, sans-serif; font-size: 12px; margin:0px; padding:0px; } #box,#box1{ padding:13px 0px 10px; padding-left:28px; width:677px; height:180px; background:url(/articleimg/2009/03/6562/bg.jpg) no-repeat; } </style></head> <body> <div id="box"></div> <div id="box1"></div> </body> </html>

[Ctrl+A 全部选择提示：你可先修改部分代码，再按运行]
